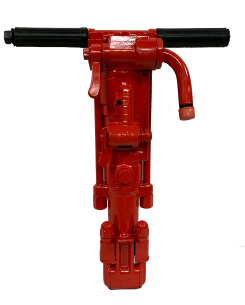

This Model 3200-A has a 7/8” Hex x 3-1/4” Chuck and
can be used on EZ-Drill Drilling Rigs.
Like all Rock Drills this tool is Designed to be used in
Solid Rock or Solid Concrete - it is Not intended for use in broken rock formations or earth drilling.
Model | Product Detail | Part Number | |
3200-A | 7/8" x 3-1/4" HEX (A) | 3200-A |
0
|
Description | Model A |
Part no | 3200-A |
Weight (lb) | 57.3 |
Length (inch) | 23 |
Drill steel chuck hex (inch) | 7/8 x 3-1/4 |
Impact frequency (blows/min) | 2100 |
Impact frequency (Hz) | 35 |
Rotation Speed (rpm) | 180 |
Drill Rate (inch/min) | 9 |
Max Drilling Diameter (inch) | 2 |
Max Drilling Depth (inch) | 118 |
Air Inlet | 3/4" Swivel |
Air consumption (cfm) | 102 @ 90 PSI |
Retainer Type | Latch |
Muffler | Option |
Vibration level 3 axes (ISO 20643) (m/sec2) | 21.9 |
Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 122 |
Sound pressure level (ISO 11203) (Lp, r = 1m) | 111 |
"H" Thread Rods |
"H" Thread Rock Bit |
"H" Thread Rock Bit |
|||||
Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | |||||||
Length Under Collar | "AH" Series | "BH" Series | "CH" Series | For broken & rough rock. | For fast penetration. | ||
7/8" x 3-1/4" Shank |
7/8" x 4-1/4" Shank |
1" x 4-1/4" Shank |
BITS SHOWN FIT ALL "H" THREAD RODS | ||||
Feet (Inches) | Part No. | Part No. | Part No. | Diameter | Part No. | Diameter | Part No. |
1' (12") | AH-1 0 | BH-1 0 | CH-1 0 | 1-1/4" | HC-125 0 | 1-1/4" | HB-125 0 |
1'6" (18") | AH-1.5 0 | BH-1.5 0 | CH-1.5 0 | 1-3/8" | HC-138 0 | 1-3/8" | HB-138 0 |
2' (24") | AH-2 0 | BH-2 0 | CH-2 0 | 1-1/2" | HC-150 0 | 1-1/2" | HB-150 0 |
3' (36") | AH-3 0 | BH-3 0 | CH-3 0 | 1-5/8" | HC-158 0 | 1-5/8" | HB-158 0 |
4' (48") | AH-4 0 | BH-4 0 | CH-4 0 | 1-3/4" | HC-175 0 | 1-3/4" | HB-175 0 |
5' (60") | AH-5 0 | BH-5 0 | CH-5 0 | 1-7/8" | HC-178 0 | 1-7/8" | HB-178 0 |
6' (72") | AH-6 0 | BH-6 0 | CH-6 0 | 2" | HC-200 0 | 2" | HB-200 0 |
Longer Lengths Available for Most Tools - Call: 800‐241‐9669 |
1" Rope/R25/100 Rods |
"Z" Series Rock Bit |
"Z" Series Rock Bit |
|||||
Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | |||||||
Length Under Collar | "AZ" Series | "BZ" Series | "CZ" Series | For broken & rough rock. | For fast penetration. | ||
7/8" x 3-1/4" Shank |
7/8" x 4-1/4" Shank |
1" x 4-1/4" Shank |
BITS SHOWN FIT ALL 1" ROPE / R25 / 100 ROPE RODS | ||||
Feet (Inches) | Part Number | Part Number | Part Number | Diameter | Part Number | Diameter | Part Number |
1' (12") | AZ-1 0 | BZ-1 0 | CZ-1 0 | 1-1/4" | ZX-125 0 | 1-1/4" | ZB-125 0 |
1'6" (18") | AZ-1.5 0 | BZ-1.5 0 | CZ-1.5 0 | 1-3/8" | ZX-138 0 | 1-3/8" | ZB-138 0 |
2' (24") | AZ-2 0 | BZ-2 0 | CZ-2 0 | 1-1/2" | ZX-150 0 | 1-1/2" | ZB-150 0 |
3' (36") | AZ-3 0 | BZ-3 0 | CZ-3 0 | 1-5/8" | ZX-158 0 | 1-5/8" | ZB-158 0 |
4' (48") | AZ-4 0 | BZ-4 0 | CZ-4 0 | 1-3/4" | ZX-175 0 | 1-3/4" | ZB-175 0 |
5' (60") | AZ-5 0 | BZ-5 0 | CZ-5 0 | 1-7/8" | ZX-178 0 | 1-7/8" | ZB-178 0 |
6' (72") | AZ-6 0 | BZ-6 0 | CZ-6 0 | 2" | ZX-200 0 | 2" | ZB-200 0 |
Longer Lengths Available for Most Tools - Call: 800‐241‐9669 |
Replaceable Tip Taper Rods |
"TC" TAPER Rock Bit |
"TB" TAPER Rock Bit |
|||||
Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | |||||||
Length Under Collar | "AT" Series | "BT" Series | "CT" Series | For broken & rough rock. | For fast penetration. | ||
7/8" x 3-1/4" Shank |
7/8" x 4-1/4" Shank |
1" x 4-1/4" Shank |
BITS SHOWN FIT ALL TAPER RODS | ||||
Feet (Inches) | Part Number | Part Number | Part Number | Diameter | Part Number | Diameter | Part Number |
1' (12") | AT-1 0 | BT-1 0 | CT-1 0 | 1-1/4" | TC-125 0 | 1-1/4" | TB-125 0 |
1'6" (18") | AT-1.5 0 | BT-1.5 0 | CT-1.5 0 | 1-3/8" | TC-138 0 | 1-3/8" | TB-138 0 |
2' (24") | AT-2 0 | BT-2 0 | CT-2 0 | 1-1/2" | TC-150 0 | 1-1/2" | TB-150 0 |
3' (36") | AT-3 0 | BT-3 0 | CT-3 0 | 1-5/8" | TC-158 0 | 1-5/8" | TB-158 0 |
4' (48") | AT-4 0 | BT-4 0 | CT-4 0 | 1-3/4" | TC-175 0 | 1-3/4" | TB-175 0 |
5' (60") | AT-5 0 | BT-5 0 | CT-5 0 | 1-7/8" | TC-178 0 | 1-7/8" | TB-178 0 |
6' (72") | AT-6 0 | BT-6 0 | CT-6 0 | 2" | TC-200 0 | 2" | TB-200 0 |
Longer Lengths Available for Most Tools - Call: 800‐241‐9669 |
1 Piece Plug Bits |
|||||
Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | |||||
Length Under Collar | Drill Depth | Drill Dia. | "A" Series | "B" Series | "C" Series |
Inches | Inches | Inches | 7/8"x3-1/4" | 7/8"x4-1/4" | 1"x4-1/4" |
Part # | Part # | Part # | |||
9" | 6" | 5/8" | A9-58 0 | B9-58 0 | C9-58 0 |
9" | 6" | 3/4" | A9-75 0 | B9-75 0 | C9-75 0 |
9" | 6" | 7/8" | A9-78 0 | B9-78 0 | C9-78 0 |
9" | 6" | 1" | A9-100 0 | B9-100 0 | C9-100 0 |
9" | 6" | 1-1/8" | A9-118 0 | B9-118 0 | C9-118 0 |
9" | 6" | 1-1/4" | A9-125 0 | B9-125 0 | C9-125 0 |
9" | 6" | 1-1/2" | A9-150 0 | B9-150 0 | C9-150 0 |
12" | 9" | 5/8" | A12-58 0 | B12-58 0 | C12-58 0 |
12" | 9" | 3/4" | A12-75 0 | B12-75 0 | C12-75 0 |
12" | 9" | 7/8" | A12-78 0 | B12-78 0 | C12-78 0 |
12" | 9" | 1" | A12-100 0 | B12-100 0 | C12-100 0 |
12" | 9" | 1-1/8" | A12-118 0 | B12-118 0 | C12-118 0 |
12" | 9" | 1-1/4" | A12-125 0 | B12-125 0 | C12-125 0 |
12" | 9" | 1-1/2" | A12-150 0 | B12-150 0 | C12-150 0 |
18" | 15" | 5/8" | A18-58 0 | B18-58 0 | C18-58 0 |
18" | 15" | 3/4" | A18-75 0 | B18-75 0 | C18-75 0 |
18" | 15" | 7/8" | A18-78 0 | B18-78 0 | C18-78 0 |
18" | 15" | 1" | A18-100 0 | B18-100 0 | C18-100 0 |
18" | 15" | 1-1/8" | A18-118 0 | B18-118 0 | C18-118 0 |
18" | 15" | 1-1/4" | A18-125 0 | B18-125 0 | C18-125 0 |
18" | 15" | 1-1/2" | A18-150 0 | B18-150 0 | C18-150 0 |
24" | 21" | 5/8" | A24-58 0 | B24-58 0 | C24-58 0 |
24" | 21" | 3/4" | A24-75 0 | B24-75 0 | C24-75 0 |
24" | 21" | 7/8" | A24-78 0 | B24-78 0 | C24-78 0 |
24" | 21" | 1" | A24-100 0 | B24-100 0 | C24-100 0 |
24" | 21" | 1-1/8" | A24-118 0 | B24-118 0 | C24-118 0 |
24" | 21" | 1-1/4" | A24-125 0 | B24-125 0 | C24-125 0 |
24" | 21" | 1-1/2" | A24-150 0 | B24-150 0 | C24-150 0 |
30" | 27" | 5/8" | A30-58 0 | B30-58 0 | C30-58 0 |
30" | 27" | 3/4" | A30-75 0 | B30-75 0 | C30-75 0 |
30" | 27" | 7/8" | A30-78 0 | B30-78 0 | C30-78 0 |
30" | 27" | 1" | A30-100 0 | B30-100 0 | C30-100 0 |
30" | 27" | 1-1/8" | A30-118 0 | B30-118 0 | C30-118 0 |
30" | 27" | 1-1/4" | A30-125 0 | B30-125 0 | C30-125 0 |
30" | 27" | 1-1/2" | A30-150 0 | B30-150 0 | C30-150 0 |
Longer Lengths Available for Most Tools - Call: 800‐241‐9669 |
