American Pneumatic
Model: 109 Series
Rock Drill

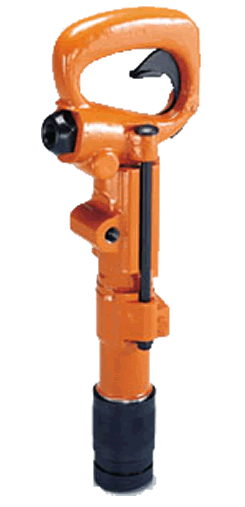

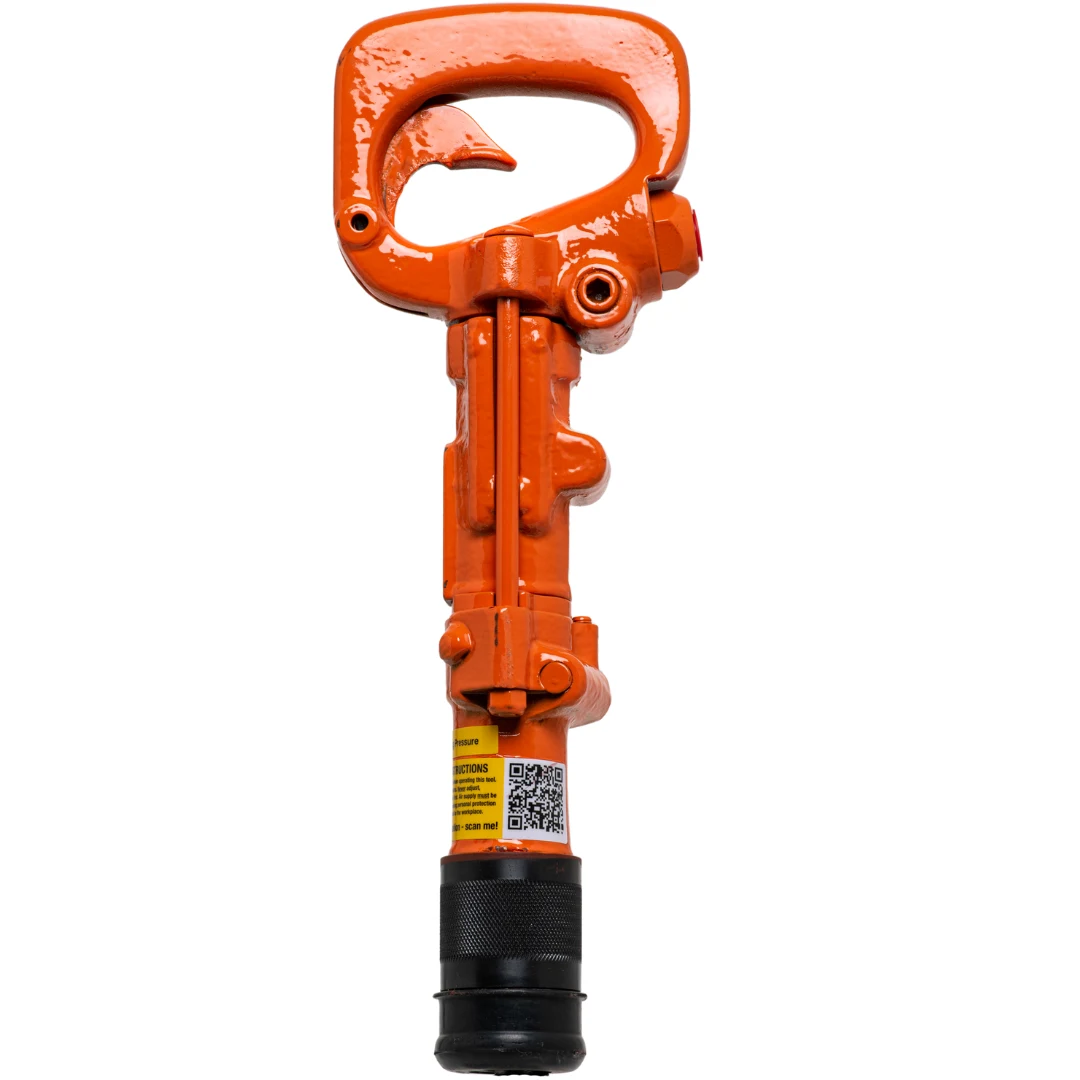

The APT Model 109s are lightweight tools for drilling holes for anchor bolts and small dowel hole drilling. These versatile tools have a stop rotation feature that converts them from a drilling tool to a percussion tool for light chipping in horizontal and overhead work.
| Model | Product Detail | Part Number |  |
| 109 | 3/4" x 3-3/4" | 17643 |
| Model | 109 |
| Part Number | 17643 |
| Chuck Size (inch) | 3/4" x 3-3/4" |
| Bore (inch) | 1-1/4 |
| Stroke Length (inch) | 2-9/16 |
| Impact frequency (blows/min) | 3400 |
| Air consumption (cfm) | 19-21 |
| Weight (lb) | 59.4 |
| Length (inch) | 15 |
| Air Inlet (inch) | 3/8 FNPT |
|
"C9" Series 1 piece Plug Bits
|
||
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | ||
| Drill Depth | Drill Diameter | "C9" Series |
| Inches | Inches | 3/4" Round Shank with 4 Slots |
| Part Number | ||
| 8" | 5/16" Solid | C9-1 |
| 8" | 3/8" Solid | C9-2 |
| 8" | 7/16" Solid | C9-3 |
| 8" | 15/32" Solid | C9-4 |
| 6" | 1/2" | C950-6 |
| 10" | C950-10 |
|
| 8" | 5/8" | C958-8 |
| 12" | C958-12 |
|
| 18" | C958-18 |
|
| 8" | 3/4" | C975-8 |
| 12" | C975-12 |
|
| 18" | C975-18 |
|
| 8" | 7/8" | C978-8 |
| 12" | C978-12 |
|
| 18" | C978-18 |
|
| 8" | 1" | C9100-8 |
| 12" | C9100-12 |
|
| 18" | C9100-18 |
|
| 24" | C9100-24 |
|
| 18" | 1-1/16" | C9116-18 |
| 24" | C9116-24 |
|
| 8" | 1-1/8" | C9118-8 |
| 12" | C9118-12 |
|
| 18" | C9118-18 |
|
| 8" | 1-1/4" | C9125-8 |
| 12" | C9125-12 |
|
| 18" | C9125-18 |
|
| 8" | 1-3/8" | C9138-8 |
| 12" | C9138-12 |
|
| 18" | C9138-18 |
|
| 8" | 1-1/2" | C9150-8 |
| 12" | C9150-12 |
|
| 18" | C9150-18 |
|
| 8" | 1-5/8" | C9158-8 |
| 12" | C9158-12 |
|
| 8" | 1-3/4" | C9175-8 |
| 12" | C9175-12 |
|
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | ||

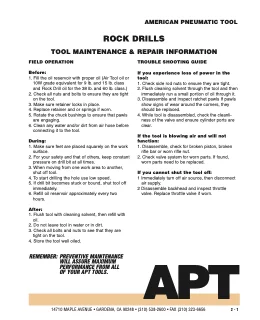

109 Series Safety Manual
