Atlas Copco

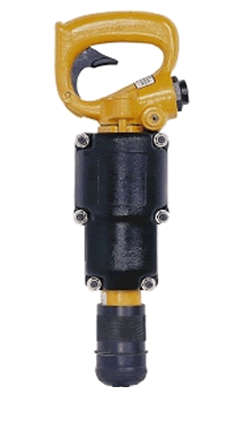

Model: DKR 36 Series
Rock Drill
| Model | Product Detail | Part Number |  |
| DKR 36R | RND 3/4" x 3-1/4" | 8463010350 |
| Description | DKR 36R |
| Part no | 8463010350 |
| Weight (lb) | 9.3 |
| Length incl. drill steel retainer (inch) | 15.2 |
| Drill steel chuck hex (inch) | Round 3/4 x 3-1/4 |
| Impact frequency (blows/min) | 2820 |
| Impact frequency (Hz) | 47 |
| Rotation Speed (rpm) | 250 |
| Penetration Rate (inch/min) | 7.1* / 6.3** |
| Hose connection (inch) | 3/4 |
| Air Consumption (cfm) | 3-1/2 @ 92 PSI |
| Vibration level 3 axes (ISO 20643) (m/sec2) | 20.2 (*breaking) 21.2 (**drilling) |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 103 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 88 |
|
"C9" Series 1 piece Plug Bits
|
|||||
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | |||||
| Drill Depth | Drill Diameter | "C9" Series | |||
| Inches | Inches | 3/4" Round Shank with 4 Slots | |||
| Part Number | |||||
| 8" | 5/16" Solid | C9-1 |
| 8" | 3/8" Solid | C9-2 |
| 8" | 7/16" Solid | C9-3 |
| 8" | 15/32" Solid | C9-4 |
| 6" | 1/2" | C950-6 |
| 10" | C950-10 | |
| 8" | 5/8" | C958-8 |
| 12" | C958-12 | |
| 18" | C958-18 | |
| 8" | 3/4" | C975-8 |
| 12" | C975-12 | |
| 18" | C975-18 | |
| 8" | 7/8" | C978-8 |
| 12" | C978-12 | |
| 18" | C978-18 | |
| 8" | 1" | C9100-8 |
| 12" | C9100-12 | |
| 18" | C9100-18 | |
| 24" | C9100-24 | |
| 18" | 1-1/16" | C9116-18 |
| 24" | C9116-24 | |
| 8" | 1-1/8" | C9118-8 |
| 12" | C9118-12 | |
| 18" | C9118-18 | |
| 8" | 1-1/4" | C9125-8 |
| 12" | C9125-12 | |
| 18" | C9125-18 | |
| 8" | 1-3/8" | C9138-8 |
| 12" | C9138-12 | |
| 18" | C9138-18 | |
| 8" | 1-1/2" | C9150-8 |
| 12" | C9150-12 | |
| 18" | C9150-18 | |
| 8" | 1-5/8" | C9158-8 |
| 12" | C9158-12 | |
| 8" | 1-3/4" | C9175-8 |
| 12" | C9175-12 | |

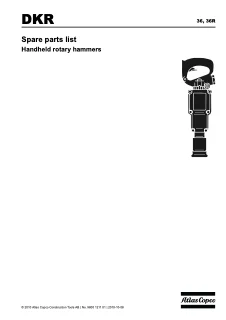

DKR 36 Series Safety Manual
