Chicago Pneumatic

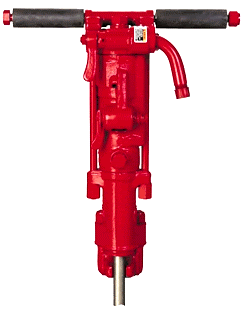

0032 Series Rock Drill
See complete drill models, specifications and accessory options below.
- Forged steel housings withstands rugged use
- Cushioned piston reduces shock
- Multiposition throttle for easy starting of holes
- Blower lever for deep hole cleaning
- Integral oiler provides continuous lubrication
- Air inlet swivel improves maneuverability
Technical Specs
Compare complete drills. + Quote adds one item; review your quote list to adjust quantities.
| All Shank Sizes | 7/8" x 3-1/4" |
|---|---|
| All Shank Sizes | 7/8" x 4-1/4" |
| All Shank Sizes | 1" x 4-1/4" |
| Weight (lb) | 57.3 |
| Length incl. drill steel retainer (inch) | 23 |
| Air Consumption (cfm) | 102 |
| Air Inlet (inch) | 3/4 swivel |
| Drill Rate (inch/min) | 9 |
| Impact frequency (blows/min) | 2100 |
| Muffler Included | Option |
| Retainer Type | Latch |
| Rotation Speed (rpm) | 180 |
| Max. Drilling Diameter (inch) | 1.97 |
| Max. Drilling Depth (inch) | 118 |
| Vibration level 3 axes (ISO 20643) (m/sec²) | 21.9 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 122 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 111 |
Complete tool configurations
Match the shank and part number. These are complete tools, not replacement parts.
| Model, shank & part number | Quote |
|---|---|
| CP 00327/8" x 3-1/4" HEX (A)Part 8900002017 | |
| CP 00327/8" x 4-1/4" HEX (B)Part 8900002013 | |
| CP 00321" x 4-1/4" HEX (C)Part 8900002016 |
Accessory Tools
“H” Thread Rods & Bits
Drill rodsAH series · 7/8" × 3-1/4" shank  | ||
|---|---|---|
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | AH-1 | |
| 1'6" (18") | AH-1.5 | |
| 2' (24") | AH-2 | |
| 3' (36") | AH-3 | |
| 4' (48") | AH-4 | |
| 5' (60") | AH-5 | |
| 6' (72") | AH-6 | |
Drill rodsBH series · 7/8" × 4-1/4" shank | ||
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | BH-1 | |
| 1'6" (18") | BH-1.5 | |
| 2' (24") | BH-2 | |
| 3' (36") | BH-3 | |
| 4' (48") | BH-4 | |
| 5' (60") | BH-5 | |
| 6' (72") | BH-6 | |
Drill rodsCH series · 1" × 4-1/4" shank | ||
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | CH-1 | |
| 1'6" (18") | CH-1.5 | |
| 2' (24") | CH-2 | |
| 3' (36") | CH-3 | |
| 4' (48") | CH-4 | |
| 5' (60") | CH-5 | |
| 6' (72") | CH-6 | |
| Rock bitsBits shown fit all “H” thread rods in this chart. Choose diameter independently of rod length. | ||
| Diameter (inches) |  Cross carbide insert bitFor broken & rough rock |  Button carbide insert bitFor fast penetration |
| 1-1/4" | HC-125 | HB-125 |
| 1-3/8" | HC-138 | HB-138 |
| 1-1/2" | HC-150 | HB-150 |
| 1-5/8" | HC-158 | HB-158 |
| 1-3/4" | HC-175 | HB-175 |
| 1-7/8" | HC-178 | HB-178 |
| 2" | HC-200 | HB-200 |
1-inch Rope / R25 / 100 Rods & Bits
Drill rodsAZ series · 7/8" × 3-1/4" shank  | ||
|---|---|---|
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | AZ-1 | |
| 1'6" (18") | AZ-1.5 | |
| 2' (24") | AZ-2 | |
| 3' (36") | AZ-3 | |
| 4' (48") | AZ-4 | |
| 5' (60") | AZ-5 | |
| 6' (72") | AZ-6 | |
Drill rodsBZ series · 7/8" × 4-1/4" shank | ||
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | BZ-1 | |
| 1'6" (18") | BZ-1.5 | |
| 2' (24") | BZ-2 | |
| 3' (36") | BZ-3 | |
| 4' (48") | BZ-4 | |
| 5' (60") | BZ-5 | |
| 6' (72") | BZ-6 | |
Drill rodsCZ series · 1" × 4-1/4" shank | ||
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | CZ-1 | |
| 1'6" (18") | CZ-1.5 | |
| 2' (24") | CZ-2 | |
| 3' (36") | CZ-3 | |
| 4' (48") | CZ-4 | |
| 5' (60") | CZ-5 | |
| 6' (72") | CZ-6 | |
| Rock bitsBits shown fit the 1-inch Rope / R25 / 100 rods in this chart. Choose diameter independently of rod length. | ||
| Diameter (inches) | Cross carbide insert bitFor broken & rough rock | Button carbide insert bitFor fast penetration |
| 1-1/4" | ZX-125 | ZB-125 |
| 1-3/8" | ZX-138 | ZB-138 |
| 1-1/2" | ZX-150 | ZB-150 |
| 1-5/8" | ZX-158 | ZB-158 |
| 1-3/4" | ZX-175 | ZB-175 |
| 1-7/8" | ZX-178 | ZB-178 |
| 2" | ZX-200 | ZB-200 |
1 Piece Plug Bits
| A series · 7/8" × 3-1/4" shank | |||
|---|---|---|---|
| Length under collar (inches) | Drill depth (inches) | Drill diameter (inches) | Part number & quote |
| 9" | 6" | 5/8" | A9-58 |
| 9" | 6" | 3/4" | A9-75 |
| 9" | 6" | 7/8" | A9-78 |
| 9" | 6" | 1" | A9-100 |
| 9" | 6" | 1-1/8" | A9-118 |
| 9" | 6" | 1-1/4" | A9-125 |
| 9" | 6" | 1-1/2" | A9-150 |
| 12" | 9" | 5/8" | A12-58 |
| 12" | 9" | 3/4" | A12-75 |
| 12" | 9" | 7/8" | A12-78 |
| 12" | 9" | 1" | A12-100 |
| 12" | 9" | 1-1/8" | A12-118 |
| 12" | 9" | 1-1/4" | A12-125 |
| 12" | 9" | 1-1/2" | A12-150 |
| 18" | 15" | 5/8" | A18-58 |
| 18" | 15" | 3/4" | A18-75 |
| 18" | 15" | 7/8" | A18-78 |
| 18" | 15" | 1" | A18-100 |
| 18" | 15" | 1-1/8" | A18-118 |
| 18" | 15" | 1-1/4" | A18-125 |
| 18" | 15" | 1-1/2" | A18-150 |
| 24" | 21" | 5/8" | A24-58 |
| 24" | 21" | 3/4" | A24-75 |
| 24" | 21" | 7/8" | A24-78 |
| 24" | 21" | 1" | A24-100 |
| 24" | 21" | 1-1/8" | A24-118 |
| 24" | 21" | 1-1/4" | A24-125 |
| 24" | 21" | 1-1/2" | A24-150 |
| 30" | 27" | 5/8" | A30-58 |
| 30" | 27" | 3/4" | A30-75 |
| 30" | 27" | 7/8" | A30-78 |
| 30" | 27" | 1" | A30-100 |
| 30" | 27" | 1-1/8" | A30-118 |
| 30" | 27" | 1-1/4" | A30-125 |
| 30" | 27" | 1-1/2" | A30-150 |
| B series · 7/8" × 4-1/4" shank | |||
| Length under collar (inches) | Drill depth (inches) | Drill diameter (inches) | Part number & quote |
| 9" | 6" | 5/8" | B9-58 |
| 9" | 6" | 3/4" | B9-75 |
| 9" | 6" | 7/8" | B9-78 |
| 9" | 6" | 1" | B9-100 |
| 9" | 6" | 1-1/8" | B9-118 |
| 9" | 6" | 1-1/4" | B9-125 |
| 9" | 6" | 1-1/2" | B9-150 |
| 12" | 9" | 5/8" | B12-58 |
| 12" | 9" | 3/4" | B12-75 |
| 12" | 9" | 7/8" | B12-78 |
| 12" | 9" | 1" | B12-100 |
| 12" | 9" | 1-1/8" | B12-118 |
| 12" | 9" | 1-1/4" | B12-125 |
| 12" | 9" | 1-1/2" | B12-150 |
| 18" | 15" | 5/8" | B18-58 |
| 18" | 15" | 3/4" | B18-75 |
| 18" | 15" | 7/8" | B18-78 |
| 18" | 15" | 1" | B18-100 |
| 18" | 15" | 1-1/8" | B18-118 |
| 18" | 15" | 1-1/4" | B18-125 |
| 18" | 15" | 1-1/2" | B18-150 |
| 24" | 21" | 5/8" | B24-58 |
| 24" | 21" | 3/4" | B24-75 |
| 24" | 21" | 7/8" | B24-78 |
| 24" | 21" | 1" | B24-100 |
| 24" | 21" | 1-1/8" | B24-118 |
| 24" | 21" | 1-1/4" | B24-125 |
| 24" | 21" | 1-1/2" | B24-150 |
| 30" | 27" | 5/8" | B30-58 |
| 30" | 27" | 3/4" | B30-75 |
| 30" | 27" | 7/8" | B30-78 |
| 30" | 27" | 1" | B30-100 |
| 30" | 27" | 1-1/8" | B30-118 |
| 30" | 27" | 1-1/4" | B30-125 |
| 30" | 27" | 1-1/2" | B30-150 |
| C series · 1" × 4-1/4" shank | |||
| Length under collar (inches) | Drill depth (inches) | Drill diameter (inches) | Part number & quote |
| 9" | 6" | 5/8" | C9-58 |
| 9" | 6" | 3/4" | C9-75 |
| 9" | 6" | 7/8" | C9-78 |
| 9" | 6" | 1" | C9-100 |
| 9" | 6" | 1-1/8" | C9-118 |
| 9" | 6" | 1-1/4" | C9-125 |
| 9" | 6" | 1-1/2" | C9-150 |
| 12" | 9" | 5/8" | C12-58 |
| 12" | 9" | 3/4" | C12-75 |
| 12" | 9" | 7/8" | C12-78 |
| 12" | 9" | 1" | C12-100 |
| 12" | 9" | 1-1/8" | C12-118 |
| 12" | 9" | 1-1/4" | C12-125 |
| 12" | 9" | 1-1/2" | C12-150 |
| 18" | 15" | 5/8" | C18-58 |
| 18" | 15" | 3/4" | C18-75 |
| 18" | 15" | 7/8" | C18-78 |
| 18" | 15" | 1" | C18-100 |
| 18" | 15" | 1-1/8" | C18-118 |
| 18" | 15" | 1-1/4" | C18-125 |
| 18" | 15" | 1-1/2" | C18-150 |
| 24" | 21" | 5/8" | C24-58 |
| 24" | 21" | 3/4" | C24-75 |
| 24" | 21" | 7/8" | C24-78 |
| 24" | 21" | 1" | C24-100 |
| 24" | 21" | 1-1/8" | C24-118 |
| 24" | 21" | 1-1/4" | C24-125 |
| 24" | 21" | 1-1/2" | C24-150 |
| 30" | 27" | 5/8" | C30-58 |
| 30" | 27" | 3/4" | C30-75 |
| 30" | 27" | 7/8" | C30-78 |
| 30" | 27" | 1" | C30-100 |
| 30" | 27" | 1-1/8" | C30-118 |
| 30" | 27" | 1-1/4" | C30-125 |
| 30" | 27" | 1-1/2" | C30-150 |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
Need help matching a model or part?
Talk to Mining Auger & Tool Works.
