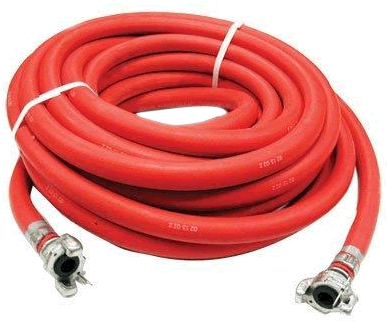

Air Hoses
 |
High Quality Air Hose
for your Pneumatic Tools!
Standard Size:
**Note: Optional sizes, lengths, & couplings are available.
Your BEST price is just a call away! |
Air Hose Accessories
|
Universal Couplers Max 100 PSI working pressure. |
||
| Type | Size (inches): | Part Number: |
Hose Ends |
3/8" | UHE-38 |
| 1/2" | UHE-50 |
|
| 3/4" | UHE-75 |
|
| 1" | UHE-100 |
|
Male NPT Ends |
1/4" | UMP-25 |
| 3/8" | UMP-38 |
|
| 1/2" | UMP-50 |
|
| 3/4" | UMP-75 |
|
| 1" | UMP-100 |
|
Female NPT Ends |
1/4" | UFP-25 |
| 3/8" | UFP-38 |
|
| 1/2" | UFP-50 |
|
| 3/4" | UFP-75 |
|
| 1" | UFP-100 |
|
Blank Ends |
Dead End | UDE |
Triple Connections |
Three Way | U3W |
Washer |
Rubber temperature range -20°F to 160°F | UNG |
Safety Clip |
Use of a safety clip is necessary to ensure universal couplings will not accidentally disconnect. This guarantees the fittings are properly connected as the pin will not go through the holes in the mating flanges until the couplings are locked in place. | USC |
|
Dual Lock Quick-Acting Couplings Max 300 PSI working pressure. |
|||
| Type | Body Size (inches): | NPT Thread Size: | Part Number: |
Male Pipe Thread |
1/2" | 3/8" | TNMP-38 |
| 1/2" | 1/2" | TNMP-50 |
|
| 1/2" | 3/4" | TNMP-75 |
|
| 1/2" | 1" | TNMP-100 |
|
Female Pipe Thread |
1/2" | 3/8" | TNFP-38 |
| 1/2" | 1/2" | TNFP-50 |
|
| 1/2" | 3/4" | TNFP-75 |
|
| 1/2" | 1" | TNFP-100 |
|
Hose End Barb w/Locking Sleeve |
1/2" | 3/8" | TLHE-38 |
| 1/2" | 1/2" | TLHE-50 |
|
| 1/2" | 3/4" | TLHE-75 |
|
| 1/2" | 1" | TLHE-100 |
|
Male Pipe Thread w/Locking Sleeve |
1/2" | 3/8" | TLME-38 |
| 1/2" | 1/2" | TLME-50 |
|
| 1/2" | 3/4" | TLME-75 |
|
Female Pipe Thread w/Locking Sleeve |
1/2" | 1/2" | TLFE-50 |
| 1/2" | 3/4" | TLFE-75 |
|
Replacement Gasket |
Replacement Gasket | TLG |
|
